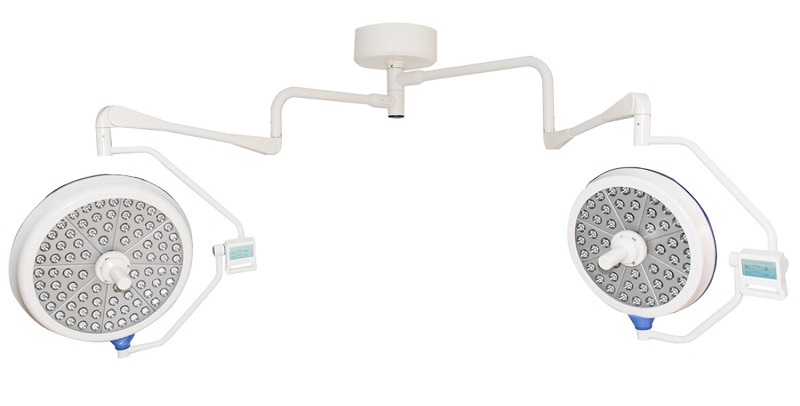

Name:700500 LED OT Light(Double Dome)


l   Adopted the totally-enclosed structure and streamlined modeling, thus meet to the requirements to clean the operating room.

l   Independent LED modules height adjustable to ensure normal working when any of module malfunction, make operation safety.

l   LCD touch screen system is developed for adjustment of power on/off, brightness and color temperature.

l   In a light dome to ensure 8 separate module and it’s can work from own lens source

l   Germany imported OSRAM LED light source to ensure cold light illumination.

l   The removable sterilizer handle can be disinfected at the high temperature of 135.( Mechanically focus adjustment)

l   With a life cycle of at least 80,000 operational hours, an LED provides illumination many times longer than conventional lighting.

l   Designed to provide a color tendering Index color temperature which is very close to natural daylight. This helps the surgeon to distinguish between pathological and healthy tissue.

l   Two balance arms which Germany imported and domestic produced for you choose.

l   Optional mobile type and battery backup up to 3 hours.



Technical Data

LED700

LED500

Central luminance at 1m

40,000~180,000 Lux

20,000~160,000 Lux

Temperature at Surgeon Head

Less than 0.5°C

Less than 0.5°C

Color temperature (KELVIN)

4000-6000 (5 step adjustable)

4000-6000 (5 step adjustable)

Power voltage (V/HZ)

110-220VAC, 50 Hz

110-220VAC, 50 Hz

Luminance adjustment

Stepless

Stepless

Color reduction index (Ra)

98

98

Diameter of spot (mm)

160-350

160-350

Lifetime of bulb (h)

80000

80000

Depth of illumination (mm)

1200

1200
